StrongHold AE20

The machine is suitable for eyelets to 20mm. Electric process.
*
€11200.00

This machine is suitable for eyelets of 8 to 20mm. Electric process.

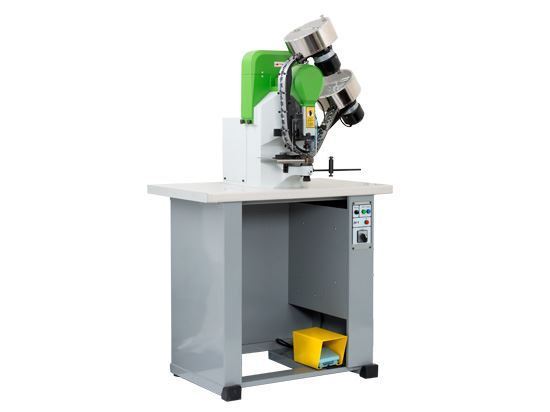

The Stronghold AE20 is an electrical Eyelettingmachine, requires little maintenance and has a low noise level. This automatic press makes the hole and places the eyelet in one operation. The machine is suitable for eyelets of 8 to 20mm and has a cycle time of 1 second, what makes it very fast.

StrongHold Eyelettingmachines are manufactured in Europe. The machine has a steel frame (not cast iron) and is built very solidly with hardened components. The machine is equipped with depth and length guide. The workable materials are: PVC, textiles, leather, etc..



Technical specifications:



Operation             : electric with foot pedal

Capacity               : 1800 eyelets per hour

Weight                         : 140 kg

Electrical connection        : 230V / 1Phase, 1,5KW

Compressed air    : 4 BAR 50 ltr./min.

Dimensions          : H149 x W90 x D70 cm

Working Depth      : 7 cm

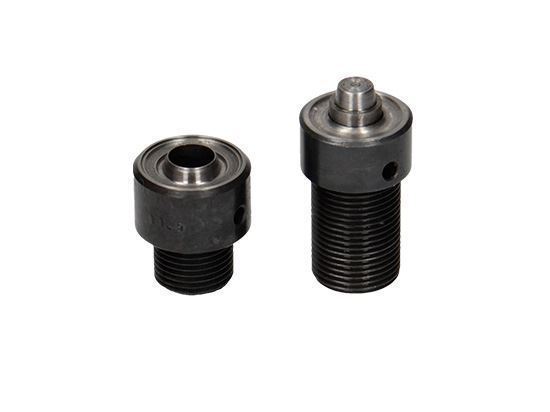

Dies                     : included

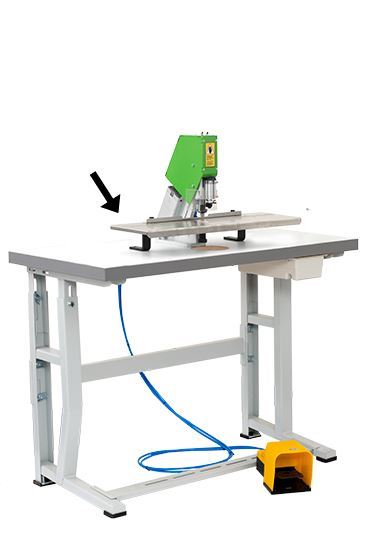

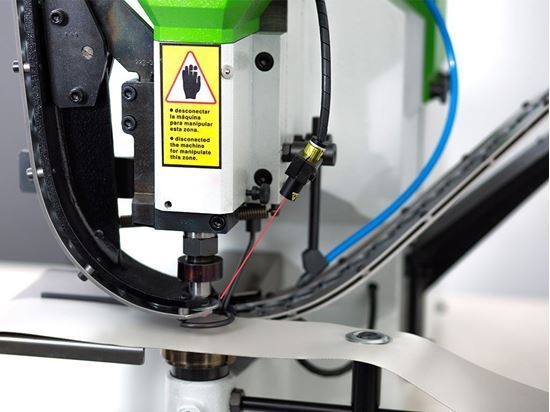

Options                : SH Laser pointer, SH LED light, SH Stainless steel guide table , Movable Frame

CE                       : approved with finger protection
